Item Number: SKU:12682

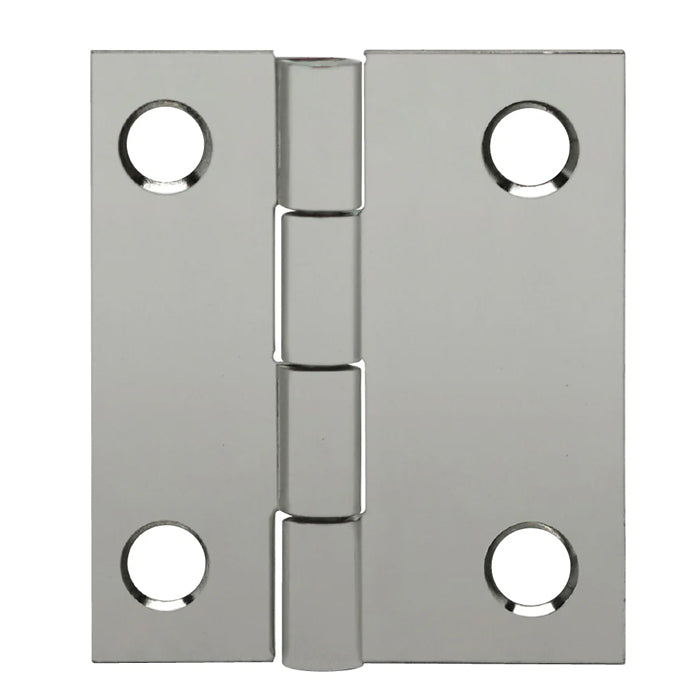

Stainless Steel Uneven Leafs Butt Hinge, Countersunk Holes, Material Thickness: 0.060"
| Specifications | |
|---|---|
| Material | T-302 Stainless Steel |
| Finish | Electro-Polished |
| Style | Butt |
| Material Thickness | 0.060" 16 gauge |
| Open Width | 1.75" |
| Hinge Length | 2.00" |
| Pin Diameter | 0.125" |
| Note for Countersunk Diameter | Countersunk holes for a #8 flat head screw. |
| Industry Focus | Marine |
| Features | Unequal leaves, leaf 1 - 1" from edge to the center of the pin, leaf 2 - 3" edge to center of the pin, corrosion resistant |
